LED wall brightness, in nits. Bright at noon. Calm at 10 pm.

Brightness is not a number to maximise. An LED wall only has to be brighter than the light falling on it, and not much more. Get that right and the wall reads clearly at 2 pm and sits calmly at 10 pm. Get it wrong in either direction and you pay every day, in a washed-out picture or in glare, heat and electricity.

What is a nit, in plain terms?

One nit is one candela per square metre. It measures how much light a surface sends towards your eye, and for an LED wall it is quoted at full white: every LED on, as bright as it goes.

What decides whether the wall is readable is not the nit figure on its own. It is the contrast between the wall and the light landing on it. A wall that looks dazzling in a showroom at 7 pm can look grey at 11 am if the sun reaches its face. That is why the direction a wall faces matters as much as where it is. In Bengaluru, a west-facing outdoor wall takes the hard afternoon sun; a north-facing one sees far less direct sun and spends more of the day below full output.

How many nits does your location need?

Every PixelSpot outdoor cabinet is IP65 at the front and IP54 at the rear, and dims automatically after dark. Full figures on our LED wall brightness chart.

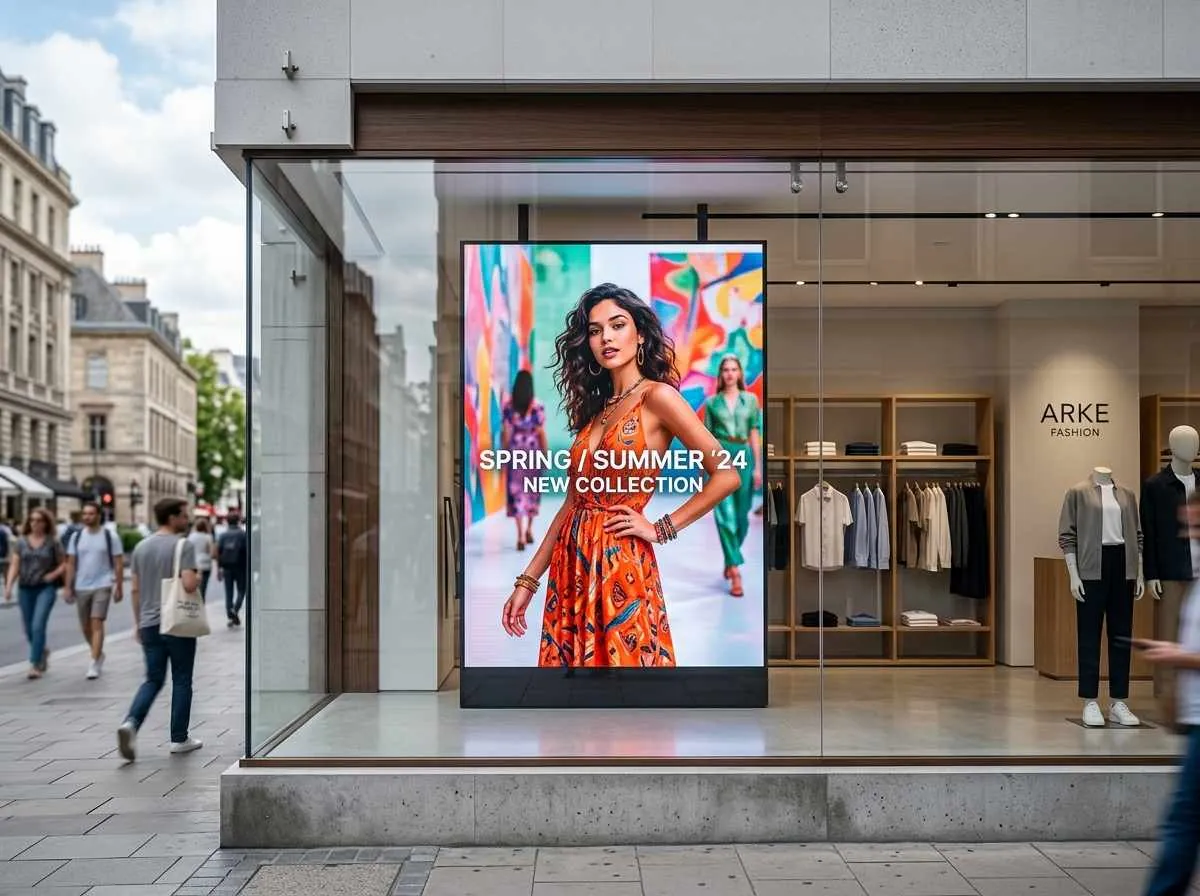

The one that catches people out: the glass shopfront

A wall placed inside a glass frontage, facing the street, is not an indoor wall. It is fighting daylight through the glass and its own reflection in it. An indoor panel in that spot, even at its full 600 nits, looks fine at opening time and grey by late morning. That position needs an outdoor-grade panel, up to 4,500 nits, run below full and dimmed in the evening, with air between the window and the wall, because glass traps heat. It is priced from the outdoor list, not the indoor one. It is also the most common brightness mistake we see on showroom walls, and the easiest to avoid at the survey stage. Why printed boards and TVs lose the same contest is in why shoppers walk past a storefront.

The west-facing wall

Bengaluru’s hardest light arrives late in the day, low and straight onto a west-facing face, just as the road gets busy. Up to 4,500 nits reads in ordinary daylight. Against that low afternoon sun, position matters as much as the panel. So at the survey we check the angle the sun strikes the face, the shade a canopy, the building or the trees give, and whether a glass building opposite bounces light back. A slight downward tilt, a hood over the top rows or a small shift along the frontage often does more than a bigger number on a datasheet. Bold type on dark backgrounds helps too. All of this is settled on site; the outdoor LED wall site survey lists what we check, and in what order.

Why more nits is not always better

If brightness were free, everyone would buy the brightest panel and turn it down. It isn’t, for four reasons.

Glare and comfort

A panel pushed to full output three metres from a customer in an air-conditioned showroom is uncomfortable to look at. Indoor walls are designed to run below their rating, and they look better for it. That is also why an outdoor panel is the wrong buy for a room, however bright it is. A jewellery showroom, lit warm and full of glass, is the clearest case; the jewellery showroom buying guide covers brightness and colour there.

Power and the electricity bill

Brightness is bought with current. Our measurements put a typical indoor wall at 150 to 250 W per square metre on normal content and 500 to 700 W at full white. Outdoor walls sit at 250 to 350 W average and 700 to 900 W peak. Size the supply for the peak, and see our power consumption guide for units per month by wall size.

Heat and lifespan

More current means more heat, and heat is what ages LEDs and power supplies. A wall that runs cooler keeps its brightness and colour longer. The LED wall lifespan guide covers what wears out, and when.

Picture quality when dimmed

Dimming a panel hard costs grey scale. Turn an outdoor panel down to a small fraction of its output to suit a room and dark scenes start to band. Match the panel to the place instead, and it sits in the comfortable middle of its range, where colour and grey scale are most even. Refresh rate and grey scale, explained covers that side.

How does auto-dimming work at night?

A light sensor on the face of the wall reads the light around it and tells the controller how bright to run. Through the day the wall follows the sun: full output near midday, lower in the morning and evening, and well under 500 nits once it is dark. A heavy monsoon afternoon pulls it down on its own. On top of the sensor, PxlOS lets you set a schedule from your phone: dim further after closing time, or switch to a single low-power still.

This is not a nice-to-have. An outdoor wall left at daytime brightness at night dazzles drivers, draws complaints from the building opposite and runs hot for no reason. Dimming protects the neighbours, the power bill and the wall itself.

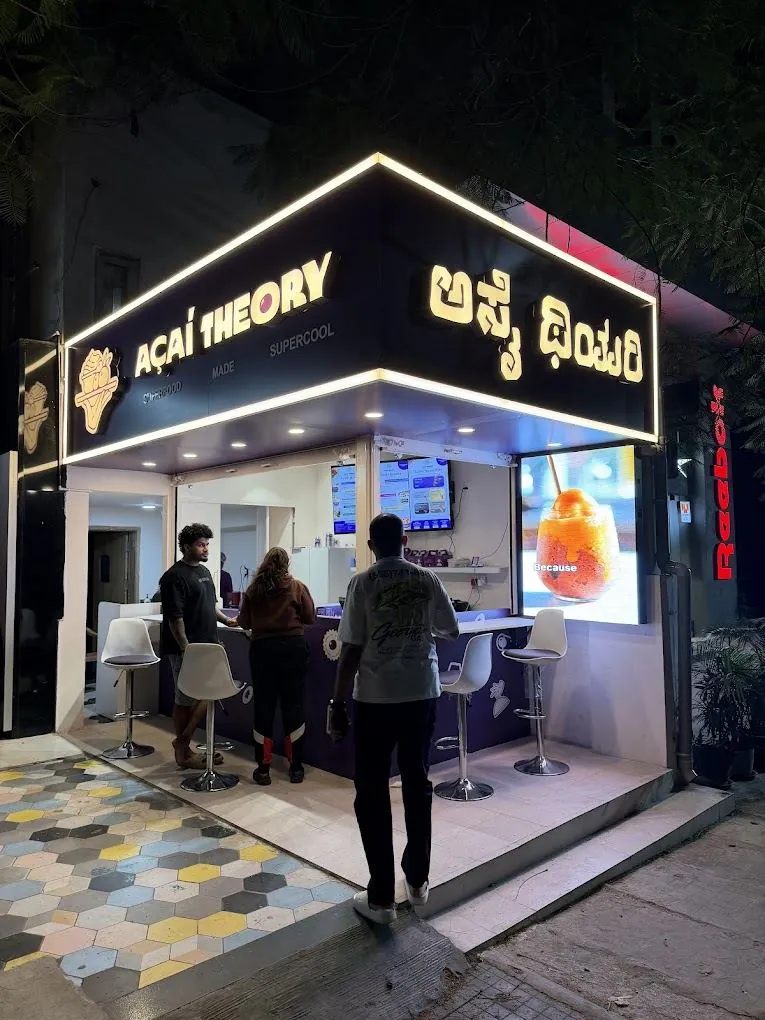

At Açaí Theory in Indiranagar, we built an outdoor P2.5 storefront wall, IP65, front-service and auto-dimming, with the menu and offers changed from a phone in PxlOS. It is a good example of the brief: readable by day on a busy street, calm by night.

Peak nits, and what you actually see

The nit figure on a module datasheet is peak brightness: full white, every LED at maximum, on a new module. Once a wall is assembled and calibrated so every module matches its neighbours, it usually runs below that peak. LEDs also lose brightness slowly over the years. So ask two questions of any quote. Is the figure peak or calibrated? And what brightness will the wall actually run at on my site?

We state ours plainly: up to 600 nits indoors, up to 4,500 nits outdoors. Indoors that leaves room to spare, because a boardroom or lobby runs well below it, and that margin is what keeps the wall on target in year five. Outdoors, the survey makes sure the wall’s position lets it read at midday before anything is ordered.

Your brightness checklist before you sign

• Which way does the wall face, and how many hours of direct sun reach its face?
• Is there glass between the wall and the people reading it? If it faces a bright street, is the panel outdoor-grade?
• Is the nit figure on the quote peak or calibrated?
• Is there a light sensor for auto-dimming, and can brightness be scheduled from the CMS?
• Does the panel hold 14-bit grey scale when dimmed?
• What is the peak power draw, and is your supply sized for it?
• For outdoor walls: is the cabinet IP65 at the front and IP54 at the rear?

Where to go next

Brightness is the one spec you cannot fix later with software. At the free site survey we look at which way your wall faces and what light falls on it, then specify the panel to match. When you know the size, the LED wall configurator prices it in about a minute.
