P4 outdoor LED display price in Bengaluru: ₹5,300 per sq ft, installed.

The P4 outdoor LED display price at PixelSpot is ₹5,300 per sq ft + GST, installed: LED modules, cabinets, the wall-mounted or fascia frame, power supplies, receiving cards, cabling, transport and installation by our own crew, with the controller extra. A complete 6x4 ft P4 outdoor wall with a Huidu controller is ₹1,60,000 + GST, an 8x4 ft wall ₹2,08,500 + GST and a 10x6 ft wall ₹3,70,000 + GST; the table below lists every size we price. P4 is the outdoor pitch most Bengaluru shopfronts, forecourts and gates settle on, because it reads from the pavement at 4 m and beyond, runs at up to 4,500 nits with auto-dimming after dark, and costs less per square foot than the finer outdoor P3. The modules and cabinets are assembled and burn-in tested by PixelSpot, an LED video wall manufacturer in Bangalore, at our factory in Jalahalli, Bengaluru, and every wall comes with PxlOS cloud CMS and the 2-year pixel-to-pixel onsite warranty. GST at 18 per cent is added on top, and the input credit is explained on the HSN and GST page.

P4 outdoor LED display price by size, + GST

These are all the P4 outdoor sizes on our price sheet (updated 30 Sep 2026). The screen price is the installed rate of ₹5,300 per sq ft + GST on the area as built; the complete-wall price adds the Huidu controller sized to the wall's pixel load.

A wall is built from whole 320 x 160 mm modules, so the area as built is a little larger than the nominal size, and the price follows the area as built. The resolution column follows the rule of wall width in millimetres divided by the 4 mm pitch; the module-exact pixel count is stated on every PixelSpot quotation. These prices are a plain wall-mounted or fascia install: the shop sign above the door, the wall beside the gate, the panel on the forecourt canopy. The quote rises, priced for your wall, when the wall needs front-service die-cast cabinets (a fascia flush against the building with no rear access, which describes many shopfronts on a main road), a NovaStar-based sending and receiving system, or a curved or ceiling-hung frame. A freestanding pole or gantry structure, and municipal permission drawings where the landlord or the BBMP asks for them, are quoted as separate lines after the free site survey so you can see them. For any other size the configurator gives an instant figure.

P4 LED display, LED screen and LED wall: one product

A P4 outdoor LED display, a P4 outdoor LED screen and a P4 LED wall are three names for the same thing: outdoor P4 modules, 4 mm between LED centres, built into one screen. The price does not change with the name. Whether it is a board-size display above a shop door or a full facade, it is ₹5,300 per sq ft + GST, installed, with the controller extra. The LED wall price in Bangalore page lists every pitch, and the outdoor LED page covers the whole outdoor range.

P4 outdoor LED screen in Bangalore: where it fits

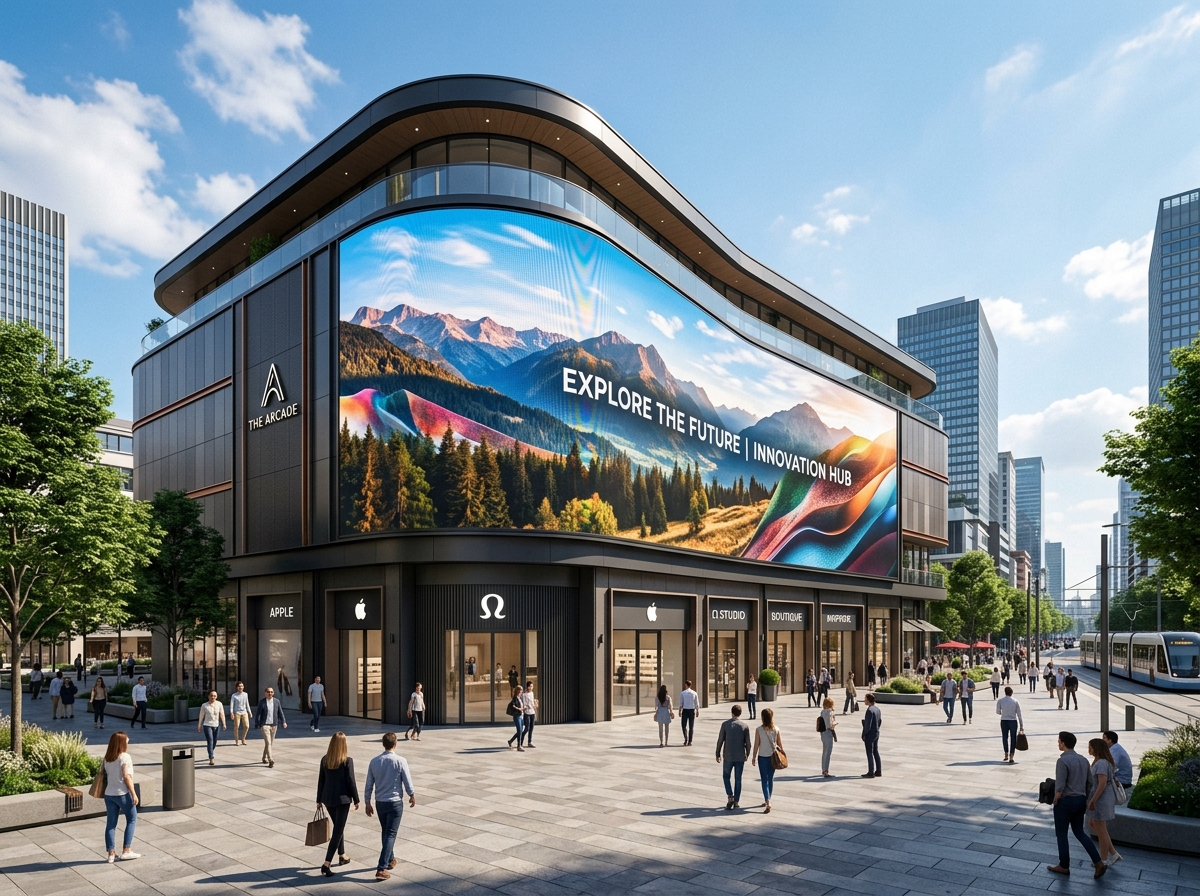

P4 reads cleanly from about 4 m, looks its best from about 8 m, and still earns its pixels out to about 13 m; beyond that a coarser P5 or P6 carries the same message for less per square foot. On a Bengaluru street that range is a shopfront or facade read from the pavement, from a parking apron or across a narrow road. Measure from where the nearest regular viewer stands, not from the kerb and not from the far side of a wide road. Typical cases where P4 is the right answer:

• Shop fascia on 100 Feet Road, Indiranagar, or 80 Feet Road, Koramangala. A wide pavement and a parking lane put the reader 4 to 8 m from the sign. An 8x4 ft P4 at ₹2,08,500 + GST sits above the door and shows the logo and the day's offer; a 10x6 ft P4 at ₹3,70,000 + GST fills the fascia with a promo reel, both with a controller. The storefront LED screen guide explains why shoppers walk past a printed board on a street like this and what the screen changes.
• Supermarket or electronics store frontage on Bannerghatta Road or Kanakapura Road. Customers read the screen from the parking apron at 6 to 10 m while they lock the car. A 12x8 ft P4 at ₹5,81,500 + GST with a controller, about 914 x 609 pixels, holds three or four offers legibly at that distance.
• Petrol pump forecourt on Hosur Road or the Outer Ring Road. Drivers read prices and offers from the pump island at 5 to 10 m; the auto-dimming matters because the forecourt is lit all night.
• Car or two-wheeler showroom forecourt in Whitefield or on Old Madras Road. A display mounted outside the glass, read by walk-ins and passing traffic from 5 to 8 m, shows a vehicle at full width on 12x8 ft. Behind street-facing glass rather than in front of it, it should still be an outdoor-grade panel of up to 4,500 nits rather than an indoor one; see the nits guide and the car showroom page.
• Temple gopuram side or church gate in Basavanagudi, Malleshwaram or Frazer Town. Devotees read timings, sevas and a live feed of the sanctum from the gate or the road at 4 to 10 m, in full sun by day and after dark through festival season. The temple LED wall page covers the indoor hall alternative.
• Hospital, school or college entrance in Yelahanka, Rajajinagar or Electronic City. Parents, students and visitors read notices and directions from the drop-off point at 5 to 8 m; a 10x6 ft P4 keeps several lines of text readable at that range.
• Wedding hall or convention centre facade on Tumakuru Road or Mysuru Road. Guests arrive by car and read the couple's names and the hall number from 6 to 12 m; a 12x8 ft P4 does that from across the car park and dims for the evening reception. See the wedding hall page.

When to step finer or coarser

Step finer to outdoor P3, at ₹7,450 per sq ft + GST, when the nearest reader stands 3 to 4 m from the wall: a narrow-pavement boutique on Commercial Street, or a street-facing menu that people read while they decide. Where a shopfront menu is read even closer, from 3 to 5 m at the counter window, the outdoor P2.5 fitted at Acai Theory in Indiranagar is ₹10,650 per sq ft + GST. Step coarser to P5, at ₹5,150 per sq ft + GST, when the first viewer is 5 m or further and the wall is large enough to carry the coarser module without the logo breaking up, and to P6 only for a large facade read from 6 m and beyond. The hoarding pitches P8 and P10 are for large displays read from 8 to 10 m and more, not for a shopfront. Indoors, the answer is never P4: go to P2.5 from 2.5 m, P2.0 at 2 m, or P1.8 when people stand inside 2 m. The viewing distance calculator and the pixel pitch chooser apply the same rule to any distance you enter.

P4 outdoor specification

Two lines on that sheet tell you whether a "P4" quote from anyone is the same product as ours. The first is the module: 80 x 40 pixels on a 320 x 160 mm board. The same board carries P5 at 64 x 32 pixels, P8 at 40 x 20 and P10 at 32 x 16, so a coarser module sold under the P4 name shows up the moment you ask for the module resolution. The second is the brightness. Ours is up to 4,500 nits, which reads in Bengaluru daylight and dims cleanly after dark, when anything above about 500 nits is glare. For a west-facing fascia that takes the sun between three and six in the afternoon, exactly when a shop wants to be seen, the survey checks the angle and shading.

P4 outdoor LED module vs a complete P4 wall

If you searched for a P4 outdoor LED module price, note what this page prices: complete walls, installed. PixelSpot builds and installs P4 outdoor walls; we do not publish a price for loose P4 modules, and the ₹5,300 per sq ft + GST rate is not a module price. A 320 x 160 mm module on its own is a board of 3,200 pixels with a sealed face. To become a working outdoor sign it needs cabinets with a protected rear, power supplies and receiving cards sized to the load, a controller, a steel frame fixed to your building, a safe power and data route, calibration so the modules match in colour, and someone to answer for it when a module fails. Those are the parts the per-sq-ft rate covers. If you are comparing a module price with our rate, add those parts back first. If you need modules replaced in a wall someone else built, the LED wall repair page explains how we assess it.

P4 vs P3 vs P5 outdoor

These are the two outdoor pitches a P4 enquiry in Bengaluru ends up choosing between: the finer P3 for a close pavement and the coarser P5 for a larger, further wall.

On a 10x6 ft shopfront the step down from P3 to P4 is the gap between ₹5,23,000 and ₹3,70,000, both with a controller and + GST, and from about 8 m, the ideal distance for P4, the two look the same. The further step from P4 to P5 is only the gap between ₹3,70,000 and ₹3,58,500 on the same wall, while dropping a 12x8 ft wall from 914 x 609 to 731 x 487 pixels and pushing the comfortable distance out to 5 m. That is why P4 is the default for a shopfront: it is the coarsest pitch that still draws a logo and a line of text cleanly on a shopfront-sized wall, and the saving for going coarser is small until the wall is facade-sized. Buy P3 when the reader is inside 4 m; buy P5 or P6 when the wall is large and the nearest viewer is well beyond 5 m; buy P4 for everything in between.

The "indoor P4" question

PixelSpot does not sell an indoor P4. If a quote for an "indoor P4" reaches you, ask for two numbers: the module resolution and the nits. A P4 module of 80 x 40 pixels built for up to 4,500 nits is an outdoor module, and three things follow if it is run inside a room. It is too bright: a room wants up to 600 nits, as on an indoor P2.5. It is coarse: comfortable viewing starts at 4 m, so anyone standing at a counter or walking through a showroom at 3 m sees the dot structure. And it is low in resolution: a 10x6 ft wall comes to about 762 x 457 pixels, where the same 10x6 ft in indoor P2.5 gives 1,219 x 731 pixels from a 128 x 64 pixel module, comfortable from 2.5 m. An indoor request at this pitch therefore comes back from us as a P2.5 quote at ₹6,150 per sq ft + GST.

P4.81 and the rental cabinets are a different product

P4.81, along with P2.6, P2.9 and P3.91, is a rental-series pitch built into 500 x 500 mm cabinets that lock together for a stage, an exhibition stand or a wedding backdrop and come down again the next day. Those cabinets are not the fixed-install P4 on this page: the pitch is different, the module is different and the cabinet is built to be carried, not to sit on a fascia through the monsoon. PixelSpot does not rent LED walls; for a one-off event, an event-AV company that rents screens is the right call. A P3.91 or P4.81 enquiry for a permanent shopfront is served by outdoor P4 from the fixed-install range.

Ready-made P4 units: Landmark 63 and Landmark 64

For a shopfront that suits a standard size, two ready-made outdoor P4 units have their own pages: the Landmark 63 P4 outdoor LED display at 6 x 3 ft and the Landmark 64 P4 outdoor LED display at 6 x 4 ft. Both are listed with IP65 at the front, IP54 at the rear, up to 4,500 nits and PxlOS; their prices and specifications are on their own pages. A custom wall at any of the sizes above is quoted through the configurator or on WhatsApp, and the shop LED screen page covers the smaller signs that sit below an 8x4 ft wall.

What a P4 wall from PixelSpot includes

• Outdoor modules and cabinets. IP65 front, IP54 rear, up to 4,500 nits with auto-dimming, assembled and burn-in tested at our Jalahalli factory before they leave for site.
• Steel frame. A wall-mounted or fascia frame is in the rate; curved, ceiling-hung, portrait pillar and freestanding pole or gantry structures are quoted after the free survey. The cabinet and frame page shows the options.
• Controller. The complete-wall prices include a Huidu controller sized to the pixel load; the per-sq-ft rate excludes it. A NovaStar sending card with NovaStar receiving cards is priced on the quote, and the controller model is named on every quotation so it can be compared like for like.
• Receiving cards, power supplies and cabling sized for the wall, with the mains connection point agreed at the survey. Outdoor modules at full brightness draw more than an indoor wall of the same size, so the circuit is checked on the visit; the power consumption guide gives the draw by pitch, and the outdoor LED wall monsoon, power bill and GST guide covers the monthly bill and the input credit.
• PxlOS cloud CMS so the shop changes the offer, the menu or the festival greeting from a phone, with scheduling for the evening dimming and for Diwali, Christmas and Ugadi campaigns.
• Our own crew. The team that assembles the wall installs it; nothing is subcontracted. The installation page describes a typical day on site.
• 2-year pixel-to-pixel onsite warranty. The warranty page lists what it covers, Support and AMC covers the years after it, and the repair page covers walls we did not build.
• Karnataka installs. The same rate card applies across Karnataka, and crew travel and lodging are inside the quote, not added later. See the Karnataka page for Mysuru, Mangaluru, Hubballi and the rest.

How to get an exact P4 price

1. Measure the fascia or wall opening and the distance to the nearest regular viewer. Under 4 m, tell us; the answer may be P3. Over 5 m on a large wall, the answer may be P5 and cheaper per square foot. Note which way the wall faces, because for a west-facing fascia the survey checks the angle and shading.
2. Use the 60-second LED wall configurator for an instant estimate with GST, spec sheet and BOM, or WhatsApp +91 72048 08334 with the size, a photo of the shopfront taken from the pavement and whether there is rear access to the wall.
3. Book the free site survey. We confirm the pitch on the pavement, check the power, the mounting and the rear access, and send a 3D mockup of the wall on your actual building with a fixed quotation. The outdoor site survey checklist lists everything we measure, in the order we measure it.

The price by pixel pitch page lists every indoor and outdoor pitch side by side, and the size pages give worked totals for 8x4 ft, 10x6 ft and 12x8 ft walls.

Guides: Indoor vs outdoor LED walls · LED wall brightness in nits · Front vs rear service · LED video wall ROI
