P2 indoor LED display price in Bengaluru: ₹7,750 per sq ft, installed.

PixelSpot builds P2 indoor LED displays (P2.0, exactly 2 mm between LED centres) as LED walls and LED screens at its factory in Jalahalli, Bengaluru, and its own crew installs them in Bengaluru and the rest of Karnataka. Whether you call it a P2 LED display, a P2 screen or a P2 LED video wall in Karnataka, the price is the same, and every standard size is priced on this page.

A P2.0 LED wall costs about ₹7,750 per sq ft installed, excluding the controller and GST, from PixelSpot's factory at Jalahalli East, Bengaluru (Bangalore). With a Huidu controller added, that makes an 8x4 ft wall ₹3,08,500, a 10x6 ft wall ₹5,56,500 and a 12x8 ft wall ₹9,09,000, all + GST. P2.0 is the middle step of the indoor range: about ₹500 per sq ft below the finer P1.8 and about ₹1,450 above P2.5. This page gives the P2.0 price by size, the full specification, the module check that stops a P2.0 board being sold at a P1.8 price, and the Bengaluru spaces where P2.0 is genuinely the right call. If you want the whole indoor and outdoor range on one page, see the LED wall price by pixel pitch guide.

P2.0 LED wall price per sq ft and by wall size

What the rate includes. The per-sq-ft rate covers LED modules, receiving cards, power supplies, the steel frame, cabling, transport and installation by PixelSpot's own crew, and excludes the controller. The wall prices add a Huidu controller sized to the pixel load and are priced on the built cabinet size. Every wall comes with PxlOS cloud CMS, 5 per cent spare modules and the 2-year pixel-to-pixel onsite warranty. Within Bengaluru the site survey, 3D mockup, delivery and installation are all inside the figure. GST at 18 per cent is added on the invoice and is claimable as input credit; the HSN code and GST page explains how.

What adds to a P2.0 quote. The ₹7,750 figure is a plain wall-mounted screen with rear access to the modules, and the wall prices above add a Huidu controller. The quote rises, priced for your wall, when the wall needs front-service die-cast cabinets because it sits flush against a plastered wall with no way to reach the back, when a NovaStar-based sending and receiving system is specified for colour calibration or multi-source switching, when the frame is curved or hung from a ceiling rather than bolted to a wall, and when the wall sits behind glass facing a bright street and needs an outdoor-grade panel of up to 4,500 nits. None of these change the module; they change the cabinet, electronics and fabrication around it.

P2 indoor LED display price for every standard size

A P2.0 LED display, a P2.0 LED screen and a P2.0 LED wall are three names for the same product: indoor P2.0 modules, 2 mm between LED centres, built into one screen. The price does not change with the name. A P2.0 LED display or LED screen from PixelSpot is ₹7,750 per sq ft + GST, installed, with the controller extra, whether it is a board-size display or a full wall. The table above gives whole-wall prices with the controller; for any other size the configurator gives a figure, and the LED wall price in Bangalore page lists every pitch.

Every P2.0 size on our price sheet, as a complete wall with a Huidu controller sized to the pixel load and installed by our crew:

A 6x4 ft P2 wall fits a café counter backdrop or a reception desk; 8x4 ft is the smallest size at which P2.0 clears the 1,200-pixel width discussed below, and 12x8 ft comes close to a one-to-one Full HD map. Smaller openings are priced on survey, and the configurator gives an instant figure.

P2 indoor LED display specification

The pitch arithmetic on P2.0 is unusually tidy. Because 320 mm divided by 160 pixels is exactly 2.0 mm, a P2.0 wall carries 500 pixels per metre of width, so the pixel count of any wall is its width in millimetres divided by two. A 10x6 ft wall is 3,048 mm wide, which is 1,524 pixels, and the table above is nothing more than that sum. The neighbouring pitches do not divide so cleanly: 320 mm over 172 pixels is 1.86 mm, and 320 mm over 128 pixels is 2.5 mm. The 12,800 LEDs per module figure is 160 multiplied by 80 and is the number a receiving card addresses on each board.

The 160 x 80 versus 172 x 86 module trap

P1.8 costs about ₹8,250 per sq ft and P2.0 about ₹7,750, both excluding the controller and GST. The gap is only ₹500 per sq ft, and the two modules share the same 320 x 160 mm board: the finer P1.86 module carries 172 x 86 pixels, the P2.0 module 160 x 80. That closeness is the trap. A P2.0 board is easily passed off as P1.8, and a buyer who compares pitch names rather than module resolutions can end up paying a P1.8 price for 7 per cent fewer pixels across and a 2 m minimum distance instead of 1.8 m.

Check the module resolution on every quote before you compare prices. 160 x 80 pixels is P2.0. 172 x 86 pixels is P1.86. If a "P2" quote and a "P1.8" quote arrive within a few hundred rupees of each other per sq ft, the P1.8 is the better wall at that money.

The trap has a second layer. Some sellers round P1.86 up to "P2" on the quotation, so a document headed P2 may in fact be describing the finer module, and a document headed P1.8 may be quoting P2.0 boards at a P1.8 price. The pitch name proves nothing; the module resolution and the pixel count for the whole wall prove everything. Ask for the module resolution and the whole-wall resolution on any quotation you compare: a 10x6 ft P2.0 wall reads 1,524 x 914 and a 10x6 ft P1.8 wall reads 1,638 x 983.

When P2.0 makes sense

• The price favours it. With a controller, an 8x4 ft P2.0 wall is ₹3,08,500 + GST against ₹3,27,500 for P1.8, and the difference in the picture from 2 m is small and from 4 m is nil. When nobody stands closer than 2 m, that saving buys nothing you would miss.
• You are extending or repairing an existing P2.0 wall. Modules are not interchangeable across pitches. A wall built with 160 x 80 boards must be extended with 160 x 80 boards, or the new section will have a different dot structure and a different pixel map in the controller. PixelSpot stocks P2.0 spares in Bengaluru for exactly this reason.
• The Full HD threshold falls at your size. An 8x4 ft P2.5 wall is 975 pixels wide, below the roughly 1,200 pixels at which a Full HD video shows without visible softening from 2.5 m. An 8x4 ft P2.0 wall is 1,219 pixels wide, just over the line. If the opening is fixed at 8x4 ft and the content is a spreadsheet or a dashboard, P2.0 is the lowest-priced pitch that clears it.
• The pixel map has to match the signal. A 12x8 ft P2.0 wall is 1,829 x 1,219 pixels, close to the 1,920 x 1,080 of a Full HD source, so the scaler does almost no work and text edges stay clean. For a studio or a control-room preview wall fed at Full HD, that near one-to-one mapping is worth specifying.

P2 indoor LED screen in Bangalore: where it fits

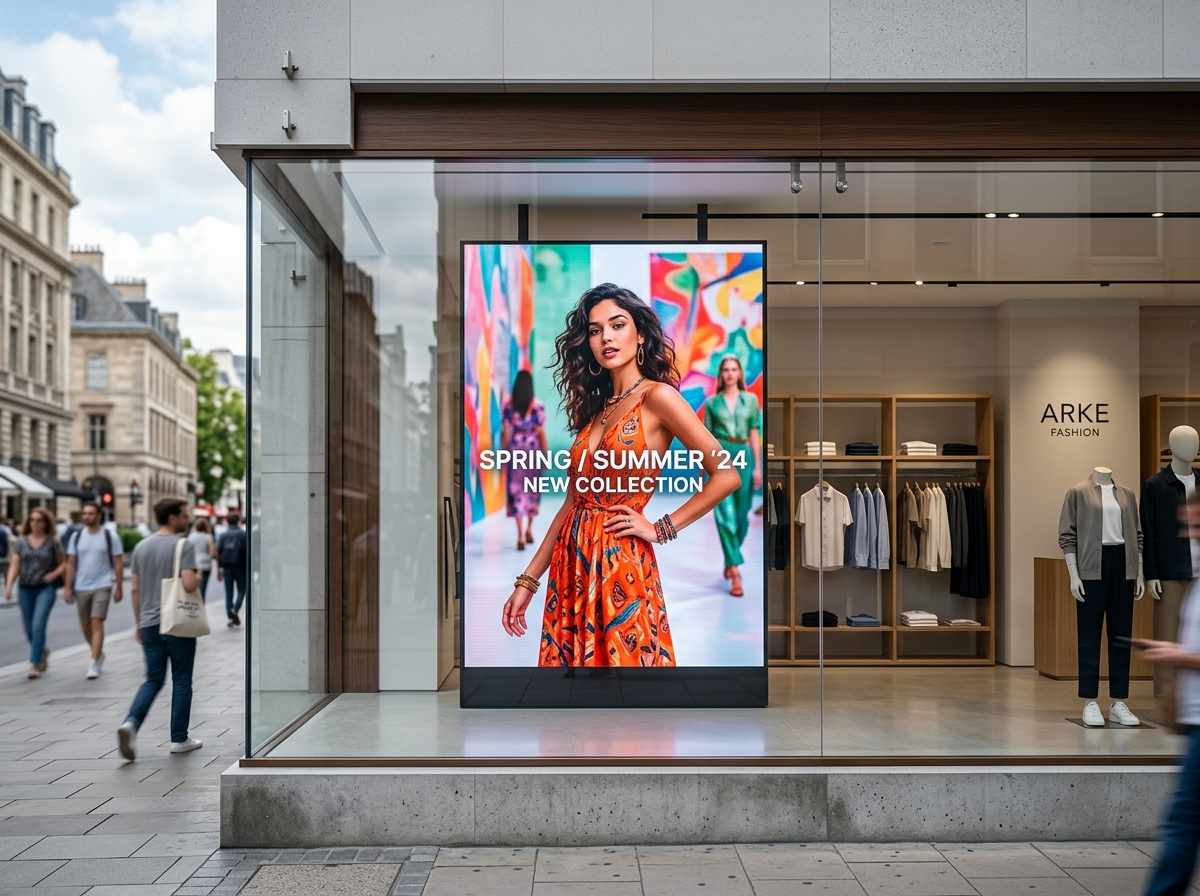

A P2 screen is at home from 2 m out to about 7 m, the span our configurator's P2.0 profile uses: 2 m is the closest comfortable distance, and beyond about 7 m P2.5 shows the same picture for less per sq ft. Inside 2 m, P1.8 is the step finer. P2 is an indoor pitch at PixelSpot; a screen in a shop window facing a bright street, or on the shopfront itself, takes an outdoor-grade panel with an IP65 front, an IP54 rear and up to 4,500 nits.

The viewing rule is simple: the minimum comfortable distance in metres is about the pitch number, and the picture looks best from about twice that. For P2.0 that is 2 m minimum and roughly 4 m ideal. Stand where the nearest regular viewer stands, not at the back of the room, and measure to the wall. If that tape reads under 1.8 m, step finer. If it reads 2.5 m or more, step coarser and keep the money. The viewing distance calculator does the same arithmetic for any pitch and size. Here is how it plays out in the spaces PixelSpot is most often asked to fit a P2.0 wall in Bengaluru.

Where P2.0 fits

• Tech-park reception on Outer Ring Road or in Whitefield. A 10x6 ft wall behind the front desk with the visitor standing at the counter about 2 m away. The brand film and the visitor welcome sit at the P2.0 minimum, and 1,524 x 914 pixels keeps a company name sharp at that range. See the office lobby page. The corporate lobby LED wall buying guide works through sightlines, pitch and flush mounting for a reception wall.
• Boardroom or training room with the front row at 2 to 3 m. A 10x6 ft P2.0 wall shows a spreadsheet or a Full HD slide deck with room to spare; the conference room guide covers the mounting height. If chairs sit closer than 1.8 m, P1.5 or P1.2 is the right step.
• Cafe or quick-service counter in Koramangala or Indiranagar. The customer placing an order stands about 2 m from the wall behind the counter, inside the 2.5 m minimum for P2.5, so a menu wall that doubles as the counter backdrop needs P2.0 or P1.8 rather than the cheaper pitch. An 8x4 ft P2.0 wall at ₹3,08,500 + GST with a controller does it; a menu read only from a queue at 3 m or more can drop to P2.5. The restaurant page has layouts.
• Hospital OPD waiting hall. Token numbers and doctor rosters read from the first row of seats at 2 to 4 m, squarely inside the P2.0 comfortable band. Details on the hospital page.
• Podcast set or in-house studio filmed at 2 to 4 m. The camera sits inside the ideal band, the 3,840 Hz refresh keeps the backdrop flicker-free on video, and the near one-to-one Full HD mapping at 12x8 ft avoids scaling artefacts on a wide shot.
• Jewellery showroom counter in Jayanagar or Chickpete. The customer stands at the glass about 2 m from the wall. P1.8 is the usual pick here, as at the Amukti store entrance, but P2.0 is the right substitute when the budget is tighter, at about ₹500 less per sq ft. The jewellery store page has more.

When to step finer or coarser

Step finer to P1.8, at about ₹8,250 per sq ft + GST, whenever the tape reads under 2 m. Step to P1.5 at about ₹12,250 per sq ft + GST when people sit at a table in front of the wall, as in a control room or a boardroom where the nearest chair is 1.5 m from the screen. Step coarser to P2.5 at about ₹6,150 per sq ft + GST whenever the nearest viewer is 2.5 m or further, which describes a car showroom feature wall seen from the floor, a temple or church stage, a wedding hall and most event backdrops. From 4 m the two are indistinguishable, and the 10x6 ft row of the comparison table below shows what the step saves. The corporate cafeteria wall we built in Bengaluru was pitched from the nearest seat in exactly this way.

P2.0 vs P1.8 vs P2.5

Read across the 10x6 ft row and the shape of the decision is clear. P2.0 carries 56 per cent more pixels per square foot than P2.5 for ₹1,07,500 more on that size; P1.8 carries 16 per cent more pixels than P2.0 for another ₹31,500, all with a controller and + GST. So P2.0 is the middle step: the pitch to choose when the nearest viewer is about 2 m away and the P1.8 premium would buy detail nobody sees, when you are matching an existing wall, or when the 1,200-pixel threshold at 8x4 ft matters. Everything else about the three modules, the 3,840 Hz refresh, the 14-bit grey scale and the 6,500 K white point, is the same.

P2 LED module vs a complete P2 LED wall

Some P2 searches come from people pricing 160 x 80 pixel modules by the piece. PixelSpot does not sell loose P2 modules. We sell the complete P2 indoor LED display: modules in cabinets or on a steel frame, receiving cards, power supplies, cabling, a controller, PxlOS, installation by our crew and the 2-year pixel-to-pixel onsite warranty, at ₹7,750 per sq ft + GST with the controller added by wall size.

The one place modules matter to a buyer is an existing wall. P2.0 boards cannot be mixed with P1.86 or P2.5 boards in the same wall, so an extension or a repair needs 160 x 80 modules from a matching batch. For walls we build, the 5 per cent spares we hand over and the P2.0 stock we keep in Bengaluru cover that; send the module resolution on WhatsApp if you plan to extend a P2 wall we built.

What a P2.0 wall from PixelSpot includes

• Modules and spares. 320 x 160 mm P2.0 modules at 160 x 80 pixels, 3,840 Hz, 14-bit grey scale, with 5 per cent spare modules handed over at installation so a swap never waits on a shipment.
• Frame or cabinets. A steel frame for a wall-mounted install at the standard rate, or front-service die-cast cabinets with magnetic modules where there is no rear access. Curved, portrait and ceiling-hung frames are fabricated at the Jalahalli East factory and priced after the free survey.
• Controller. The wall prices include a Huidu controller sized to the pixel load; the per-sq-ft rate excludes it. A NovaStar sending card and receiving cards, where calibration, redundancy or multiple inputs are needed, are priced on the quote. Ask for the controller model on the quotation so quotes can be compared like for like.
• Power and cabling. Power supplies, receiving cards, data and power looms, and the connection to the site's power; the free site visit confirms power and access.
• PxlOS. The cloud CMS for scheduling and switching content from a phone or laptop, included with every wall.
• Crew. Installation by PixelSpot's own crew, working out of the Jalahalli East factory where the wall is built.
• Warranty and service. 2-year pixel-to-pixel onsite warranty, 24-hour service response in Bengaluru, module swaps from ₹1,800 after the warranty and an AMC from ₹150 per sq ft per year. See the warranty page. What to expect in years two to five, once the warranty ends, is set out in the LED wall after installation guide.
• Karnataka installs. The same per sq ft rate applies from Mysuru and Mangaluru to Hubballi, Belagavi and Kalaburagi, with freight and crew travel shown as separate lines; Hosur and Krishnagiri are served as Bengaluru neighbours. See LED wall Bengaluru and LED walls across Karnataka.

How to get a P2.0 quote

1. Measure the opening and the distance to the nearest regular viewer. If it is under 2 m, ask for both P2.0 and P1.8 pricing on the same sheet.
2. Use the 60-second LED wall configurator for an instant estimate with GST, spec sheet and BOM, or send the size and a photo of the wall on WhatsApp, +91 72048 08334.
3. Book the free site visit. We confirm the pitch, check power and access, and send a 3D mockup of the wall in your space with a fixed quotation. Then run the module check above on it and on any competing quote.

Guides: How to choose pixel pitch · Pixel pitch, explained · LED wall brightness in nits · Front vs rear service
